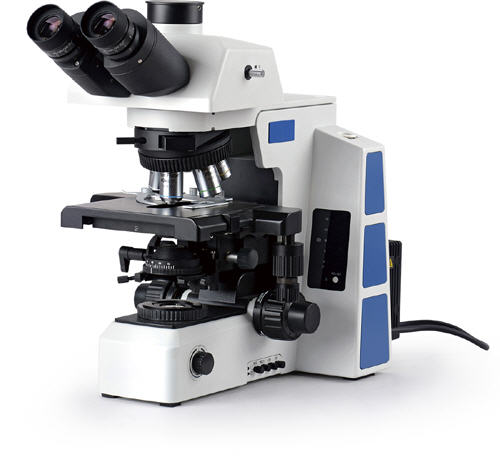

- XJE500
|
Specification
|
XJE500B
|
XJE500T
|
|
|
Optical System
|
Infinity System f=200mm
|
●
|
●
|
|
Viewing Head
|
Siedentopf Binocular, Inclined at 30 °, Rotatable 360°, Interpupilary Distance: 50~76mm
|
|
|
|
Siedentopf Trinocular, Inclined at 30 ° , Rotatable 360°, Interpupilary Distance: 50~76mm, Light Distribution: 0/100
or 100/0 with the erect image, Inverted image with light distribution 20/80 or 0/100
|
|
●
|
|
|
Eyepiece
|
WF10X/25mm with adjust pointer
|
●
|
●
|
|
WF10X/26.5mm with adjust pointer
|
|
|
|
|
Objective
|
Plan Semi-Apo Fluoresence 4X/0.13 WD=15.3
|
●
|
●
|
|
Plan Semi-Apo Fluoresence 10X/0.30 WD=8.7
|
●
|
●
|
|
|
Plan Semi-Apo Fluoresence 20X/0.50 WD=2.5
|
●
|
●
|
|
|
Plan Semi-Apo Fluoresence 40X/0.75 WD=0.72
|
●
|
●
|
|
|
Plan Semi-Apo Fluoresence 100X/1.3 WD=0.21
|
●
|
●
|
|
|
Nosepiece
|
BF sextuple nosepiece with socket for DIC
|
●
|
●
|
|
BF quintuple nosepiece with socket for DIC
|
|
|
|
|
BF septuplets nosepiece with socket for DIC
|
|
|
|
|
Stage
|
Double Stage: 187×168mm
Moving Range: 80×55mm
Coaxial Coarse and Fine Focusing Knobs
|
●
|
●
|
|
Condenser
|
Abbe NA=1.25 with iris diaphragm
|
●
|
●
|
|
Filter
|
Blue(45mm)
|
|
|
|
Green(45mm)
|
|
|
|
|
Neutral(45mm)
|
|
|
|
|
Illumination
|
100W HG Illumination System 3W
|
|
|
|
12V 100W Halogen Lamp
|
●
|
●
|
|
|
Adapter
|
1X
|
|
|
|
0.5X
|
|
|
|
|
0.35
|
|
|
|
|
Optional Accessories
|
Simply Polarizer
|
|
|
|
Reflection Fluoresence Illumination
|
|
|
|
|
Fluoresence Attaches(B, G)
|
|
|
|
|
Fluoresence Attaches(UV, V) ysl tasche türkei
|
|
|
|
|
LED Fluoresence Attaches(385nm)
|
|
|
|
|
LED Fluoresence Attaches(455nm)
|
|
|
|
|
LED Fluoresence Attaches(470nm)
|
|
|
|
|
LED Fluoresence Attaches(560nm)
|
|
|
|
