XJM700

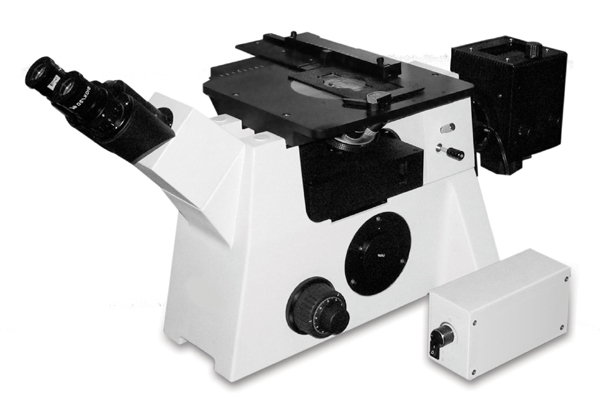

XJM700 Inverted metallurgical microscope provide multiple function as your need. At present it is the biggest voulume style in all China microscope manufacture.
While it also can be with CCD and digital camera installed on trinocular head.
|
Parts
|
Specifications
|
XJM700
|
|
Optical System
|
Infinite Plan Optical System F=200mm
|
●
|
|
Viewing Tube
|
Siedentopf trinocular head, interpupillary distance 52~75mm, 45° inclined, diopter adjustable.
|
●
|
|
Eyepiece
|
WF10X/20, High eye-point up to 21mm.
|
●●
|
|
WF10X/22, High eye-point up to 21mm.
|
○
|
|
|
WF16X/14mm
|
○
|
|
|
WF10X/20mm with reticule
|
○
|
|
|
Nosepiece
|
Quintuple, Inward facing.
|
●
|
|
Objectives
|
Plan Achromatic 4X/0.10 WD=12.86mm
|
○
|
|
Plan Achromatic 10X/0.25 WD=9.67mm
|
●
|
|
|
Plan Achromatic 20X/0.40 WD=7.97mm
|
●
|
|
|
Plan Achromatic 100X/1.25(S,O) WD=0.17mm
|
○
|
|
|
Long working distance Plan Achromatic 50X/0.60 WD=2.40mm
|
●
|
|
|
Long working distance Plan Achromatic 80X/0.75 WD=1.70mm
|
●
|
|
|
Stage
|
Fixed stage: 240×260mm, low-position co-axial flexible adjusting handle, moving range:135×85mm
|
○
|
|
Double layers stage: 350×208mm,moving range: 50×50mm，low-positioned co-axial flexible adjusting handle.
|
●
|
|
|
Illumination
|
12V 50W halogen lamp
|
●
|
|
12V 50W Osram halogen lamp
|
○
|
|
|
12V 100W halogen lamp
|
○
|
|
|
12V 100W Osram halogen lamp
|
○
|
|
|
Fuse tube: 250V 3.15A Φ5×20
|
●
|
|
|
Filter
|
Blue filter (Φ26)
|
●
|
|
Green filter (Φ26)
|
●
|
|
|
Yellow filter (Φ26)
|
●
|
|
|
Attaches
|
Simply Polarizer and Analyzer
|
●
|
|
C-Mount
|
1X
|
○
|
|
0.5X
|
●
|
|
|
0.25X (Fit 1/3"CCD)
|
○
|
|
|
Digital Camera Joint
|
(Please advice your digital camera model in advance)
|
○
|
|
Allen Screw Driver
|
Φ2mm
|
●
|
|
Φ2.5mm
|
●
|
|
|
Φ3mm
|
●
|
|
|
Power Wire
|
CE Certified
|
●
|
|
Optional
|
Material analysis soft
|
○
|
|
Package
|
Inner: Foam, Plastic Bag;
Outer: Carton |
●
|
Pack: 1 carton, 45kgs, Meas.:690*680*420mm
