XJM100

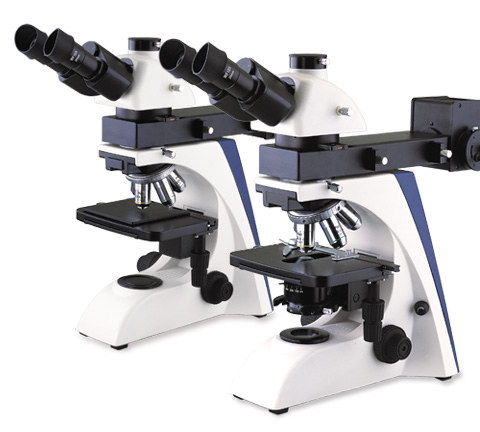

The XJM100 series upright metallurgical microscope is capable of reflected and transmitted light enables application on both crystal and opaque samples. The mature ICOS adopts in XJM100 series ensures the excellent optical clarity and contrast required by today's discerning microscopists while delivering an perfect cost-to-performance ratio.
CCD or digital camera can be attached for image capture and professional but user-friendly metallurgical analysis softeare is also available for option.
|
Specifications
|
XJM101
|
XJM102
|
XJM103
|
XJM104
|
|
|
Optical System
|
Infinity Optical System F=180mm
|
●
|
●
|
●
|
●
|
|
Viewing Head
|
Siedentopf binocular, inclined at 30°
Interpupilary distance 50~75mm |
●
|
|
●
|
|
|
Siedentopf trinocular, inclined at 30°
Interpupilary distance 50~75mm Light distribution: 0:100 |
|
●
|
|
●
|
|
|
Eyepieces
|
WF10X/20mm
|
○
|
○
|
○
|
○
|
|
WF10X/18mm
|
●●
|
●●
|
●●
|
●●
|
|
|
WF10X/18mm (Reticule 0.1mm)
|
●
|
●
|
●
|
●
|
|
|
WF5X
|
○
|
○
|
○
|
○
|
|
|
WF12.5X
|
○
|
○
|
○
|
○
|
|
|
WF16X
|
○
|
○
|
○
|
○
|
|
|
Objectives
|
Plan Achromatic 4X/0.10 (S) WD=2.14mm
|
●
|
●
|
●
|
●
|
|
Plan Achromatic 10X/0.25 (S) WD=2.14mm
|
●
|
●
|
●
|
●
|
|
|
Plan Achromatic 20X/0.40 (S) WD=2.14mm
|
●
|
●
|
●
|
●
|
|
|
Plan Achromatic 40X/0.65 (S) WD=0.45mm
|
○ |
○
|
○
|
○
|
|
|
Plan Achromatic 100X/1.25 (S,O) WD=0.12mm
|
○
|
○
|
●
|
●
|
|
|
LWD Plan Achromatic 20X/0.40 WD=8.35mm
|
○
|
○
|
○
|
○
|
|
|
LWD Plan Achromatic 40X/0.65 WD=3.90mm
|
●
|
●
|
●
|
●
|
|
|
LWD Plan Achromatic 50X/0.70 (S) WD=1.95mm
|
○
|
○
|
○
|
○
|
|
|
LWD Plan Achromatic 80X/0.80 (S) WD=0.85mm
|
○
|
○
|
○
|
○
|
|
|
Nosepiece
|
Quintuple, inward
|
●
|
●
|
●
|
●
|
|
Stage
|
Double layers size: 190×140mm with Scale: 0.1mm
Moving Range: 78×55mm |
●
|
●
|
●
|
●
|
|
Stage Plate
|
Place the sample on the plate
|
●
|
●
|
●
|
●
|
|
Polarizing Set
|
Built In Polarizer and Analyzer
|
●
|
●
|
●
|
●
|
|
Condenser
|
Abbe Condenser NA=1.25 (with iris diaphragm)
|
|
●
|
●
|
|
|
Collector
|
Center adjusted, with field diaphragm Koehler Illumination,
|
|
●
|
●
|
|
|
Focusing Unit
|
Coaxial coarse and fine focusing knobs
|
●
|
●
|
●
|
●
|
|
Filter
|
Blue
|
|
|
●
|
●
|
|
C-mount
|
1X
|
|
○
|
○
|
|
|
0.5X
|
|
○
|
|
○
|
|
|
Illuminator
|
12V 50W halogen lamp (Reflected Illumination)
|
●
|
●
|
●
|
●
|
|
6V 20W halogen lamp (Transmitted Illumination)
|
|
|
●
|
●
|
|
Pack: 1 carton. G.W.: 15.5KGS, 12KGS, Meas.: 75*36*45CM
