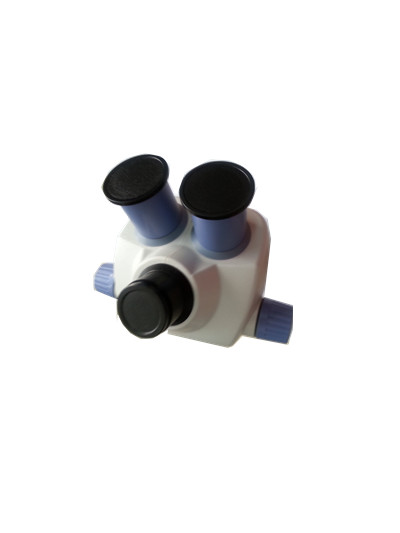

ZOOM460 and ZOOM445---- Outstanding Optical Performance Stereomicroscope
Superior prisms enable a lightweight, compact design.
Choose between the two models: the ZOOM460 and ZOOM445 with 0.7X~3.0X zoom magnification or
The ZOOM460N and ZOOM445N with 1X~4.5X zoom magnification, inclination angles of 60° and 45°respectively.
With the option LED stand, these microscopes let you observe a wide range of specimens, from Petri dishes to plants, insects, small animals and minerals.
|
Specification
|
ZOOM445
|
ZOOM445N
|
ZOOM460
|
ZOOM460N
|
|
|
Optical System
|
Greenough stereoscopic
|
Greenough stereoscopic
|
Greenough stereoscopic
|
Greenough stereoscopic
|
|
|
Head Observation
|
Binocular,inclined 45°
|
Binocular,inclined 45°
|
Binocular, inclined 60°
|
Binocular,inclined 60°
|
|
|
Tinocular,inclined 45°
|
Tinocular,inclined 45°
|
|
|
|
|
|
Interpupillary Adjustment
|
46~76mm
|
46~76mm
|
46~76mm
|
46mm~76mm
|
|
|
Diopter Adjustment
|
±5°
|
±5°
|
±5°
|
±5°
|
|
|
Zoom ratio
|
Zoom460 1:4.3
|
Zoom460 1:4.5
|
Zoom460 1:4.3
|
Zoom460N 1: 4.5
|
|
|
Magnification Range (With 10X Eyepiece)
|
Zoom460 0.7X~3X
|
Zoom460N 1X~4.5X
|
Zoom460 0.7X~3X
|
Zoom460N 1X~4.5X
|
|
|
Objective
|
1X
|
1X
|
1X
|
1X
|
|
|
Working Distance
|
97mm
|
97mm
|
97mm
|
97mm
|
|
|
Eyepiece
|
WF10X/F.N.20
|
WF10X/F.N.20
|
WF10X/F.N.20
|
WF10X/F.N.20
|
|
|
Field of View
|
28.6~6.7mm
|
28.6~6.7mm
|
28.6~6.7mm
|
28.6~6.7mm
|
|
|
Microscope Body——Optional
|
|||||
|
Magnification Range
|
3.5X~120X
|
5X~180X
|
3.5X~120X
|
5X~180X
|
|
|
Auxilary Objectives
|
0.5X, 0.75X, 2X
|
0.5X, 0.75X, 2X
|
0.5X, 2X
|
0.5X, 2X
|
|
|
Working Distance
|
50~177m
|
50~177m
|
50~177m
|
50~177m
|
|
|
Eyepiece
|
WF15X/F.N.16, WF20X/F.N.12.5
|
WF15X/F.N.16, WF20X/F.N.12.5
|
WF15X/F.N.16, WF20X/F.N.12.5
|
WF15X/F.N.16, WF20X/F.N.12.5
|
|
|
Field of View
|
3.3~45.8mm
|
3.3~45.8mm
|
3.3~45.8mm
|
3.3~45.8mm
|
|
|
Accessory——Optional
|
|||||
|
Illumination
|
Fluorescent Right light, Cold Light
|
Fluorescent Right light, Cold Light
|
Fluorescent Right light, Cold Light Source Series
|
Fluorescent Right light, Cold Light Source Series
|
|
|
Digital Cameral
|
DCM, MDC series
|
DCM, MDC series
|
DCM, MDC series
|
DCM, MDC series
|
|
|
Adapter(Trinocular)
|
CCD Adapter Series
|
CCD Adapter Series
|
CCD Adapter Series
|
CCD Adapter Series
|
|
Pack:
Only Head: 1 carton, G.W.: 2KGS, Meas.: 25*25*24CM
Head with Stand: 1 carton G.W.: 9KGS (with LED) 8KGS (without LED), Meas.:3 6*30*40CM
