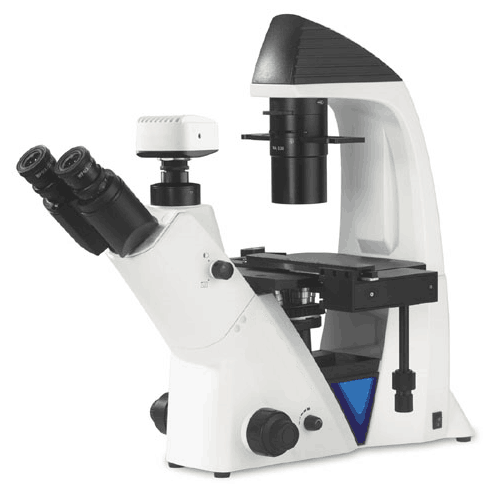

- KXD400
|
Specifications
|
KXD400
|
|
|
Optical System
|
Infinity Optical System F=180mm
|
●
|
|
Viewing Head
|
Siedentopf trinocular head, interpupillary distance 48~76mm, 45°inclined,diopter adjustable
|
●
|
|
Eyepiece
|
WF10X/23mm
|
●●
|
|
Centering telescope
|
○
|
|
|
WF10X/23mm (Reticule)
|
○
|
|
|
Nosepiece
|
Quintuple
|
●
|
|
Long Work-distance Objectives
|
Plan Achromatic 10X/0.25 WD=4.3mm t=1.2mm
|
●
|
|
Plan Achromatic 20X/0.40 WD=8.0mm t=1.2mm
|
●
|
|
|
Plan Achromatic 40X/0.60 WD=3.5mm t=1.2mm
|
●
|
|
|
Phase-Contrast
Objevtives
|
Plan Achromatic 10X/0.25 WD=4.3mm t=1.2mm
|
●
|
|
Plan Achromatic 20X/0.40 WD=8.0mm t=1.2mm
|
○
|
|
|
Plan Achromatic 40X/0.60 WD=3.5mm t=1.2mm
|
○
|
|
|
Stage
|
Fixed stage: 227×208mm, handle, Moving Range: 114×77mm
|
●
|
|
Glass stage: Ф118mm
|
||
|
Slide Plate(86x129mm, Φ87.5mm), replaceable
|
●
|
|
|
Slide Plate(77.5×34mm, Φ68.5mm), replaceable
|
●
|
|
|
Transmitted light Illumination
|
55mm extreme long work distance condenser, NA=0.3, with iris diaphragm, 6V 30W halogen lamp house, filter jack
|
●
|
|
Phase-contrast slide, makes it easy to change between 10X, 20X, 40X phase-contrast and brightfield observation.
|
●
|
|
|
6V 30W halogen lamp
|
●
|
|
|
External power, can be selected with 100V / 240V
|
●
|
|
|
Nosepiece
|
Quintuple, Inward facing.
|
●
|
|
C-Mount
|
1X
|
○
|
|
0.5X
|
○
|
|
|
Digital Camera Joint
|
(Please advice your digital camera brand and model in advance)
|
○
|
Pack: 1 carton, G.W.: 18.2KGS, Meas.: 50*36*66CM
